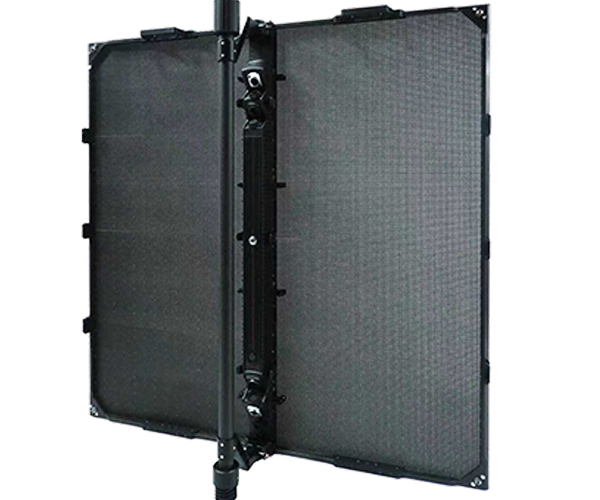

RC-iHolo3.9XL
Holographic LED Screen
7kg
1000x1000mm indoor



Redefining Ultra-Lightweight


Engineered with a single-molded carbon fiber frame and perforated PCB design,


RC-iHolo delivers exceptional strength while staying incredibly light.


Perfect for rental and fixed installation,


it greatly reduces rigging time and transport costs without sacrificing durability.




Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
12KG
Average weight of 1000*1000mm indoor transparent panel in the market
ONLY 7kg
RC-iHolo3.9XL 1000*1000mm indoor transparent panel
Ultralight Carbon Fiber
LED Display
  • Full Carbon Frame
  • Modular Design
  • Curveable
  • 90°Corner
  • Front & Rear Maintenance
  • High transparency

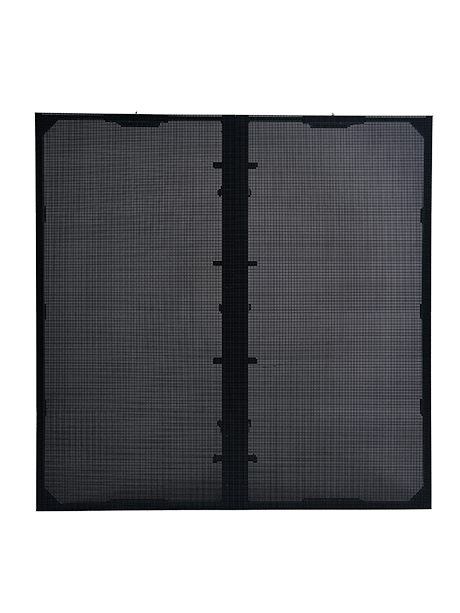

LED panel screen

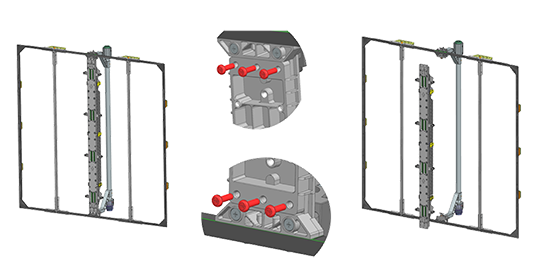

Power Box Front Maintenance
Power Box Front Maintenance

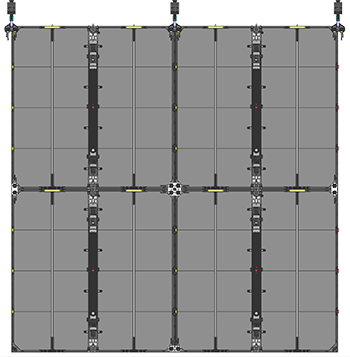

Straight Installation
Straight Installation

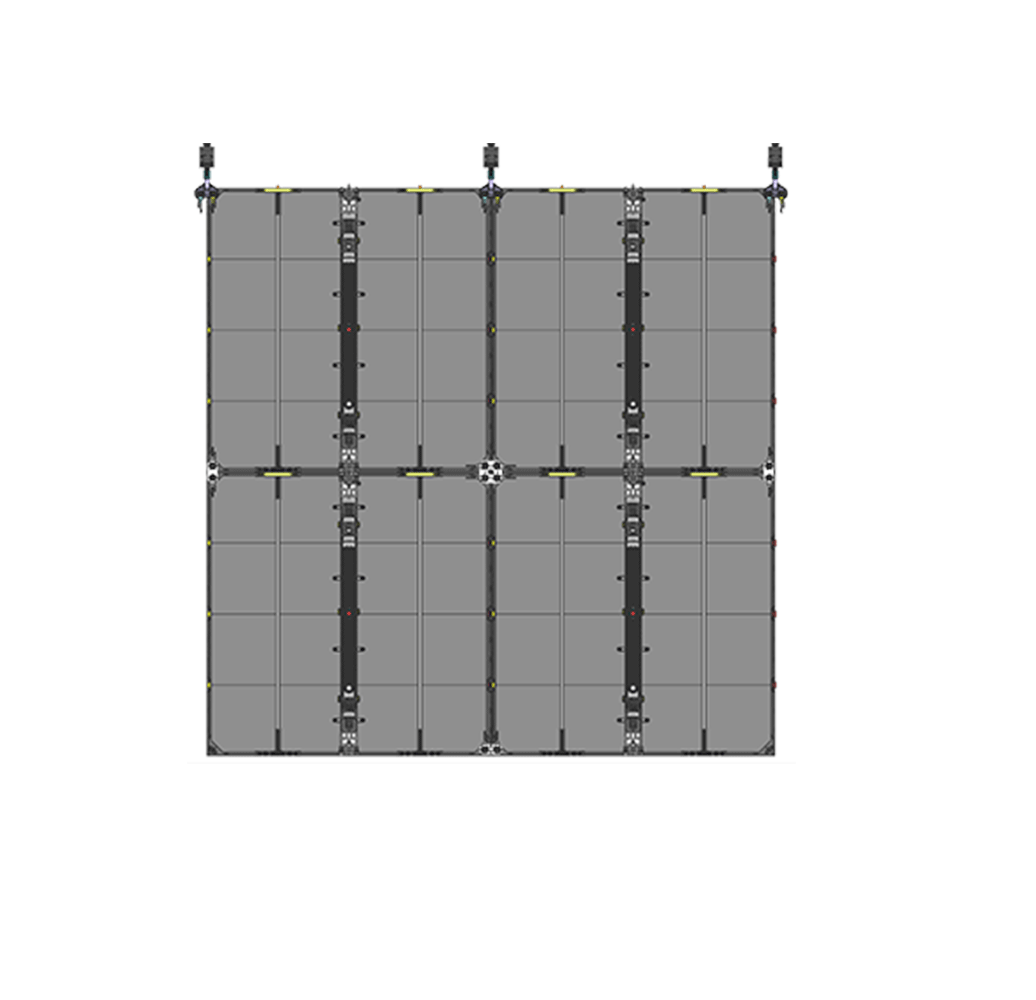

Stacking Installation
Stacking Installation

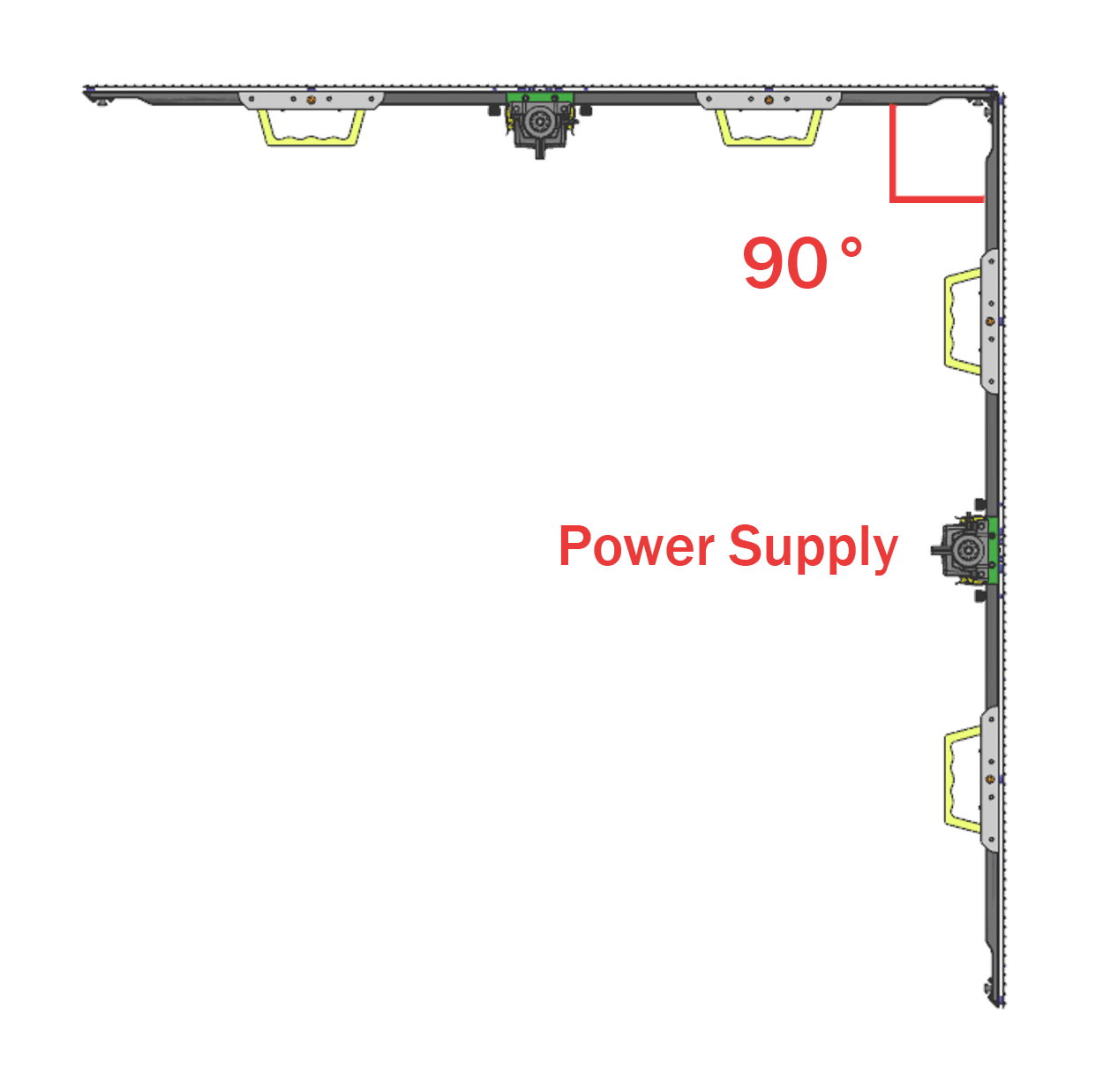

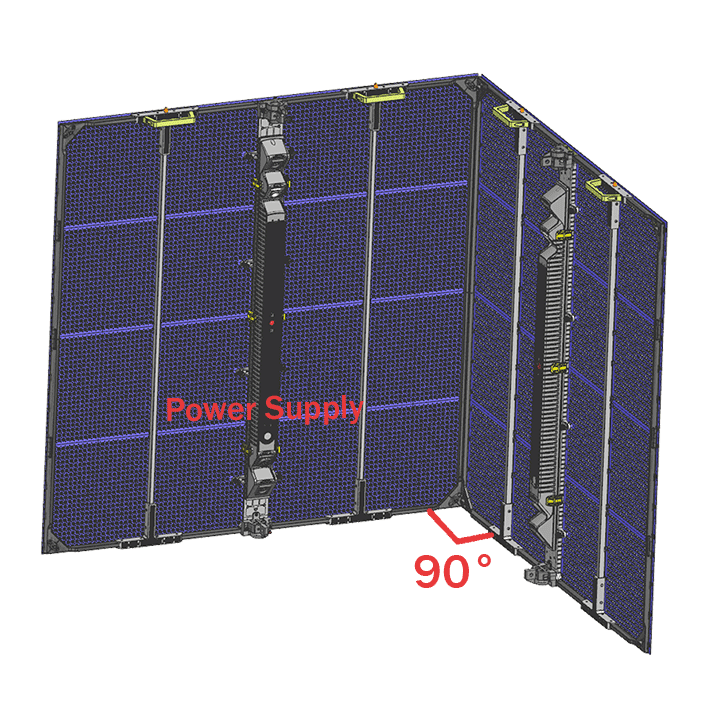

90 degrees Installation

LED video wall

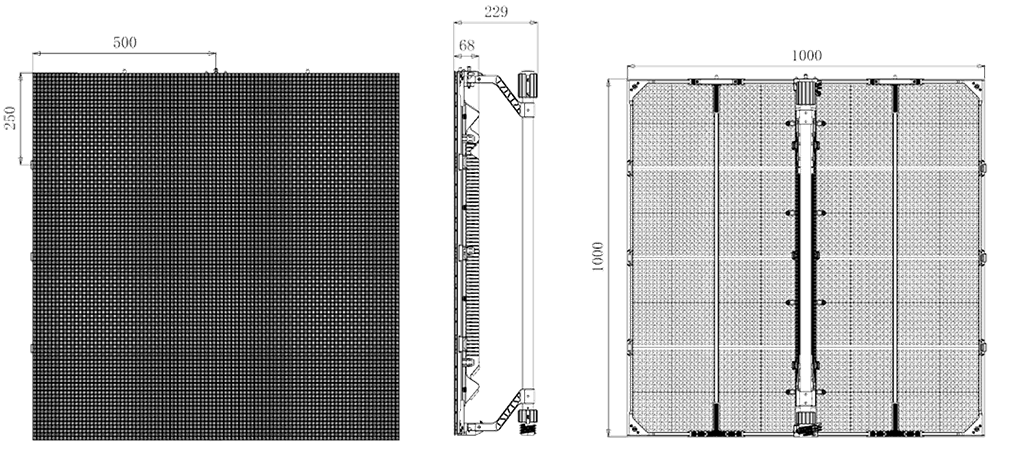

transparent LED display
Product parameters
  • LED configuration
  • SMD 1515 Black
  • Pixel Pitch
  • 3.91mm(H) 3.91mm(V)
  • Cabinet Resolution
  • 256x256
  • LED Cabinet Size(WxHxD)
  • 1000x1000x68mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fibe
  • Cabinet Weight
  • ≤7kg
  • Viewing Angle
  • 160°H/160°V half brightness point
  • Service Access
  • Front
  • Curving
  • + 10 or – 10°,+ 5 or – 5°
  • IP Rate(Front&Rear)
  • IP40
  • Refresh Rate
  • 7680Hz
  • Transparency
  • 30%
  • Power Consumption, Maximum (watts)
  • 560w/cabinet |560W/sqm
  • Power Consumption, Typical (watts)
  • 280w/cabinet |280W/sqm
  • Operating Temp/Humidity
  • -20°C~45°C | -4° to 113° F/ 10%~80%RH
  • Storage Temp/Humidity
  • -40°C~60°C | -40° to 140° F/ 10%~90%RH (non condensing)
  • Storage Temp/Humidity
  • -40°C~60°C | -40° to 140° F/ 10%~70%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

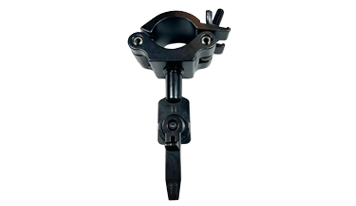

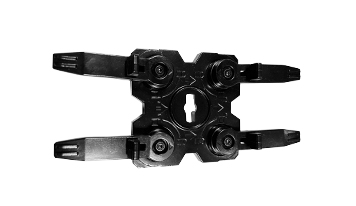

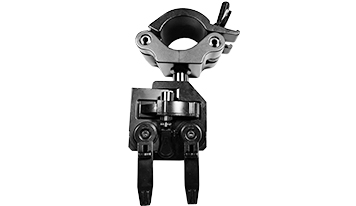

Hanging connection plate

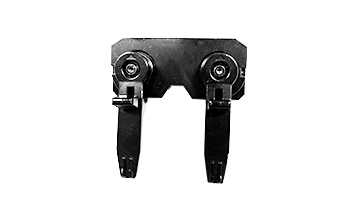

Half connection plate

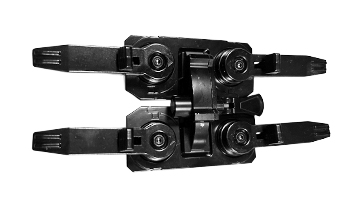

Connection plate

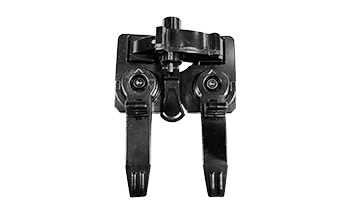

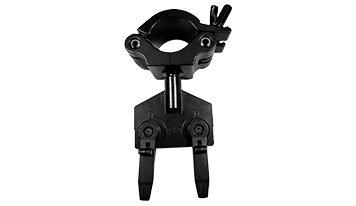

Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
