RC-iL3.9
7kg
500x1000mm indoor
Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
12KG
Average weight of 500*1000mm indoor panel in the market
7kg
RC-iL3.9 500*1000mm indoor panel

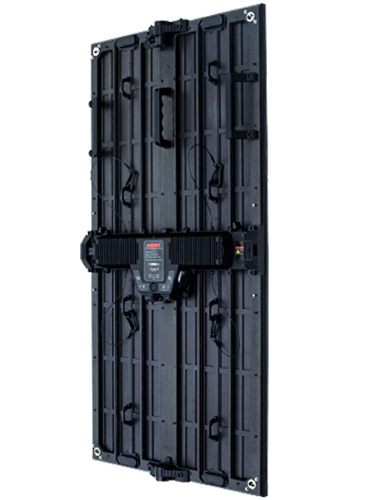

Ultralight Carbon Fiber
Led Display
  • Full Carbon Frame
  • Common Cathode
  • Modular Design
  • Curveable
  • 90°Corner
  • Full Touring System

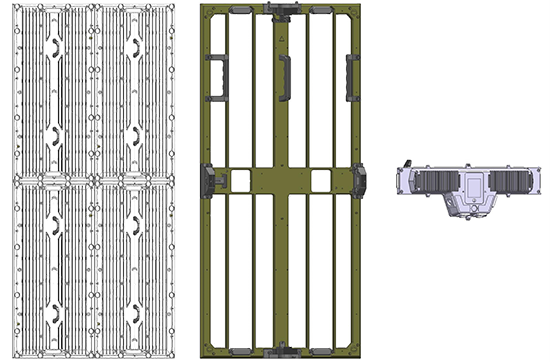

Modular Design

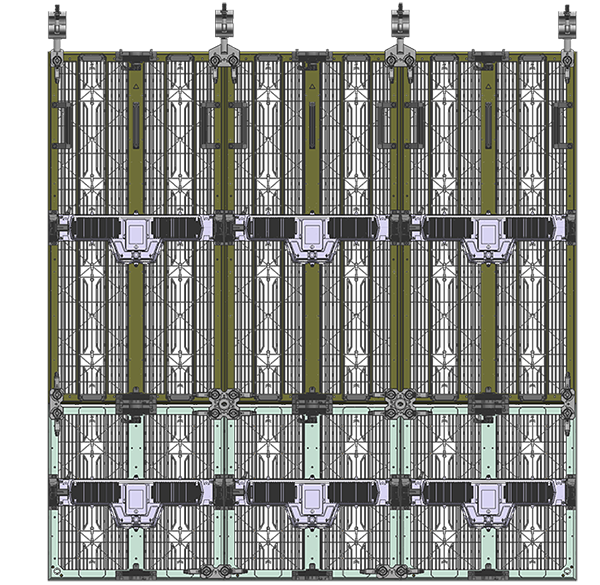

Straight Installation

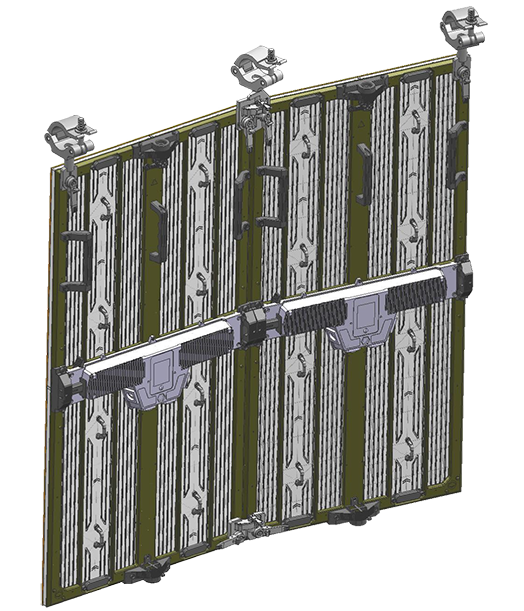

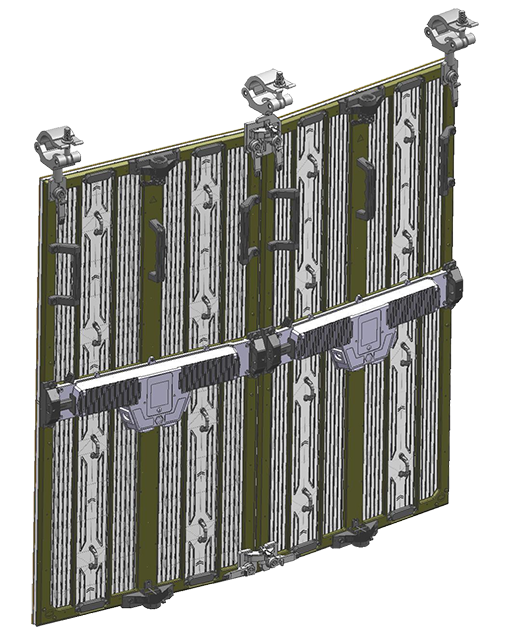

Curved Installation

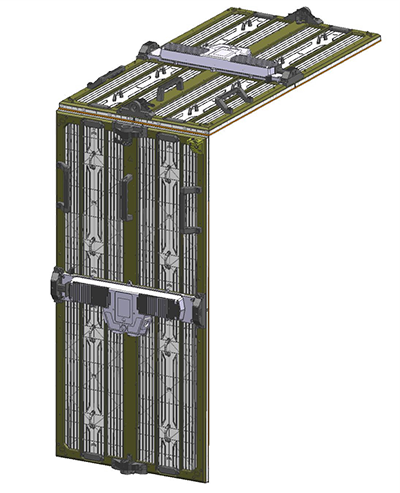

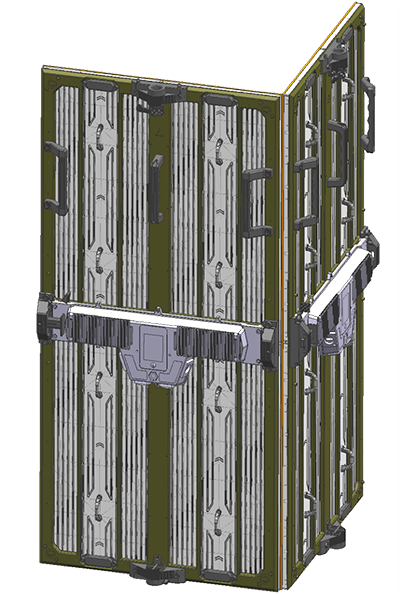

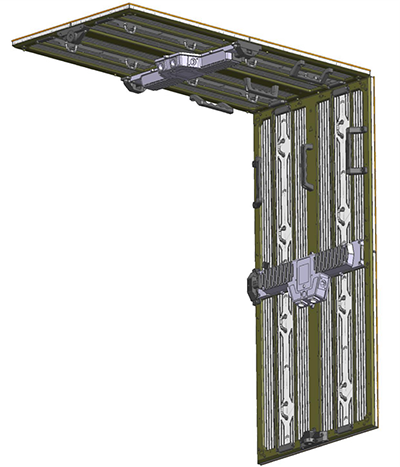

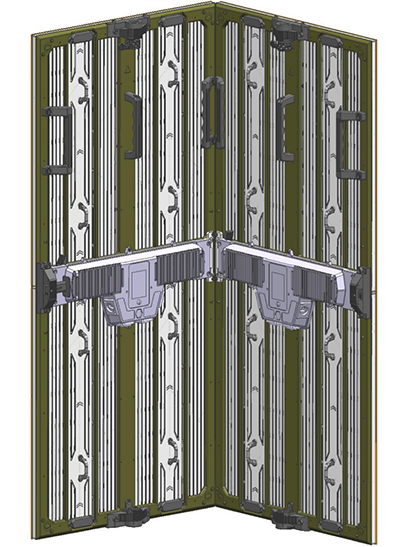

90 degrees Installation
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 3.9mm
  • Cabinet Resolution
  • 128x256

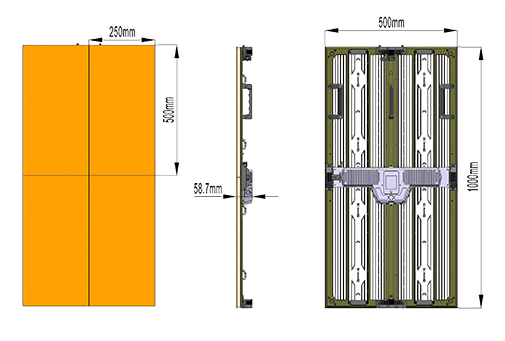

  • LED Cabinet Size(WxHxD)
  • 500x1000x66mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤7kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP40
  • Transparency
  • Solid
  • Refresh Rate
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 270w/cabinet |540W/sqm
  • Power Consumption, Typical (watts)
  • 135w/cabinet |270W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～80%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

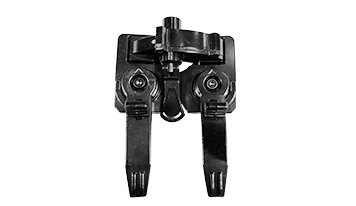

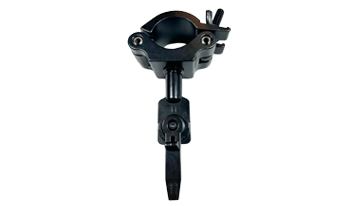

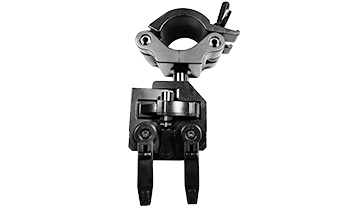

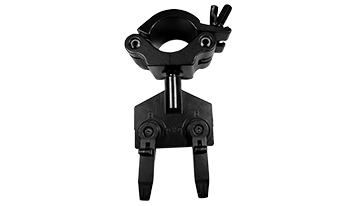

Hanging connection plate
Half connection plate

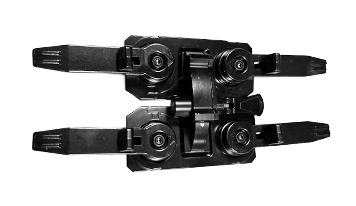

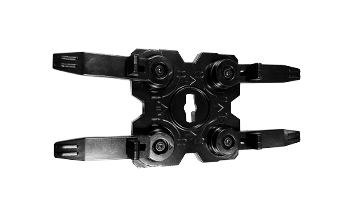

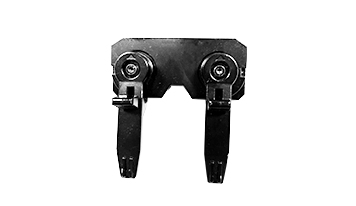

Connection plate
Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
