RC-i2.6
LED video wall display
3.9kg
500x500mm indoor LED wall display



Indoor LED Wall Display

Designed with a sheet-formed carbon fiber frame and 3 in 1 SMD RGB package,


RC-i2.6 LED panels will bring you brilliant visual experience.


Compatible of curved and right-angled installation methods,


RC-i2.6 LED displays can be a part of a creative stage design. It is a widely used LED display.

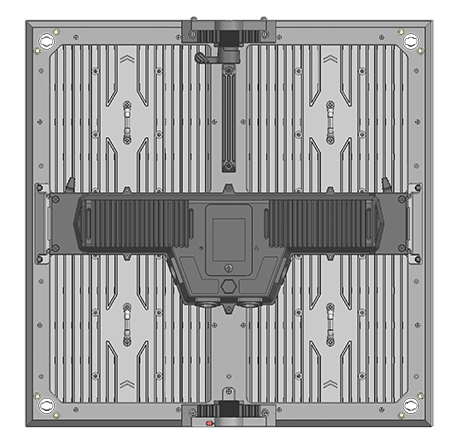

Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
8KG
Average weight of 500*500mm indoor panel in the market
ONLY 3.9kg
RC-i2.6 500*500mm indoor LED wall display

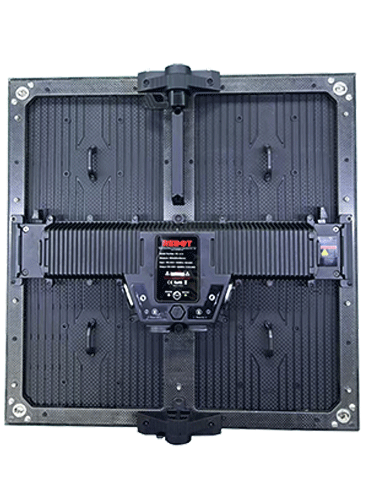

Ultralight Carbon Fiber
LED Display
  • Full Carbon Frame
  • Common Cathode
  • Modular Design
  • Curveable
  • 90°Corner
  • Full Touring System
LED video wall display

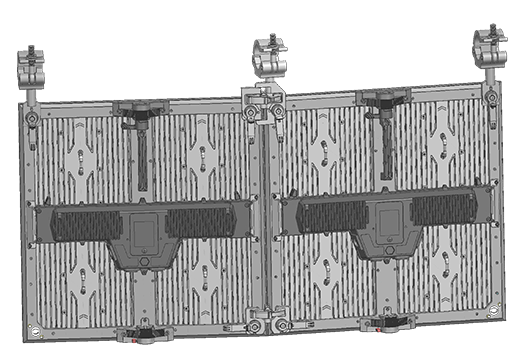

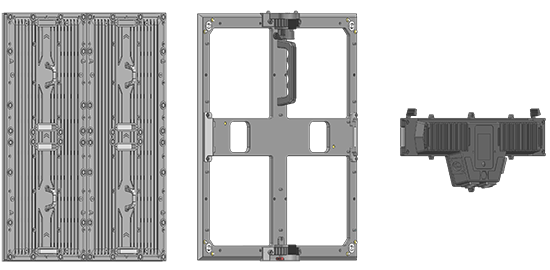

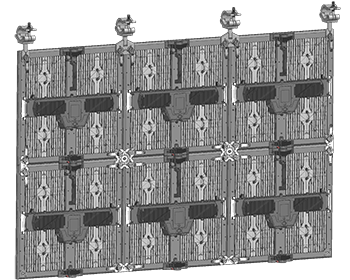

Modular Design of LED Video Wall Display
LED video wall display

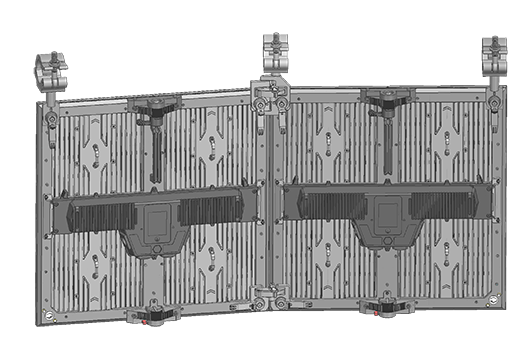

Straight Installation
LED video wall display

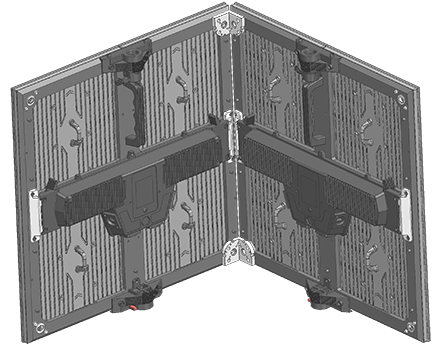

Curved Installation
LED video wall displaysLED wall display

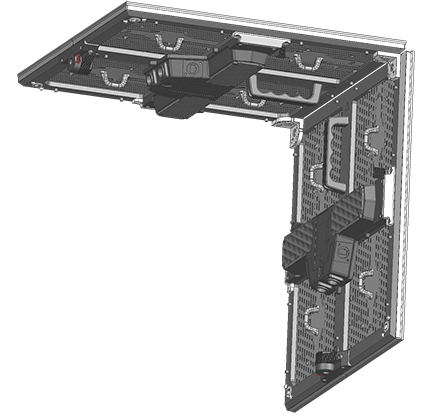

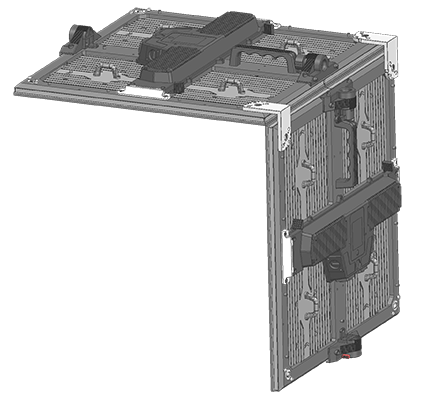

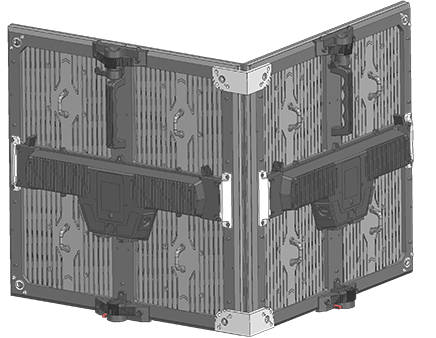

Indoor LEDWALL 90 degrees Installation
             
LED wall display
Indoor LEDWALL
LED video wall displays
LED wall display
LED wall display
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 2.6mm
  • Cabinet Resolution
  • 192x192
  • LED Cabinet Size(WxHxD)
  • 500x500x66mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤3.9kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP40
  • Transparency
  • Solid
  • Refresh Rate
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 135w/cabinet |540W/sqm
  • Power Consumption, Typical (watts)
  • 67.5w/cabinet |270W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～80%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

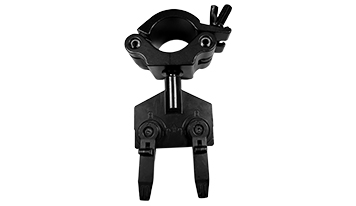

Hanging connection plate

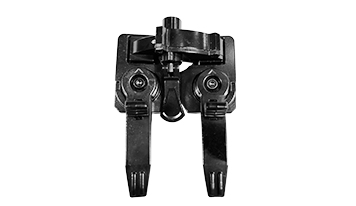

Half connection plate

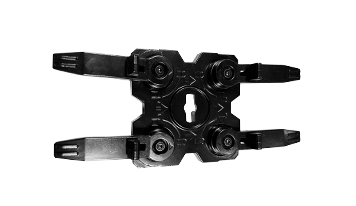

Connection plate

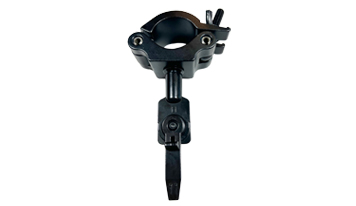

Half hanging connection plate

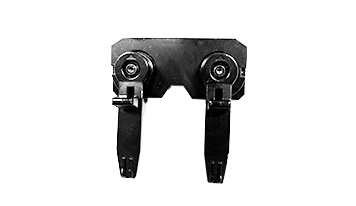

Half curve connection plate

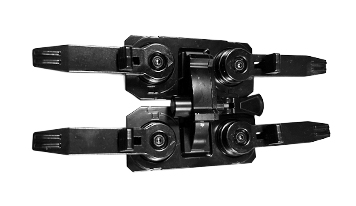

Curve connection plate

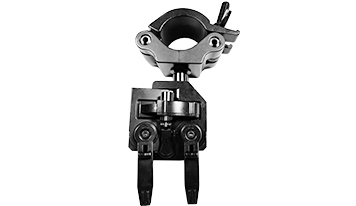

Hanging curve connection plate
