RC-i3.9
LED display
3.9kg

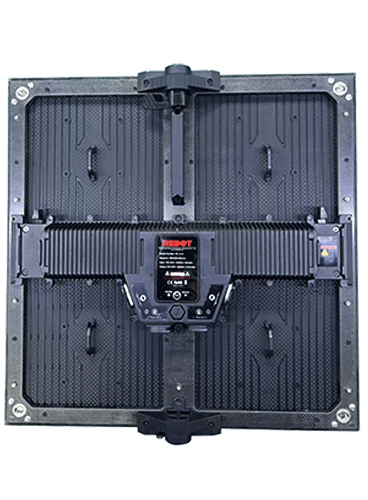

500x500mm indoor LED display



Indoor LED Display

Engineered with a sheet-formed carbon fiber frame and 3 in 1 SMD RGB package,


RC-i3.9 delivers stunning visual effects while staying incredibly light.


As high-performance indoor LED displays, C-i3.9 LED panels are popular with stage designers.


Redot has this ultra lightweight frame LED display for sale now.




Benefits Of Carbon Fiber Indoor LED display
  • Lighter
  • Thinner
  • Tougher
  • Faster
8KG
Average weight of 500*500mm indoor LED displays in the market
ONLY 3.9kg

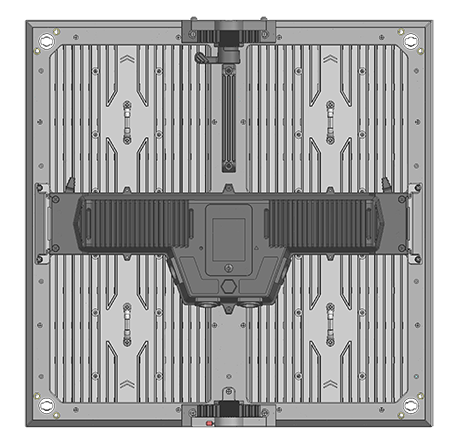

RC-3.9 500*500mm indoor LED display screen
Ultralight Carbon Fiber
Indoor LED Display
  • Full Carbon Frame
  • Common Cathode
  • Modular Design
  • Curvable
  • 90°Corner
  • Full Touring System
indoor LED displays

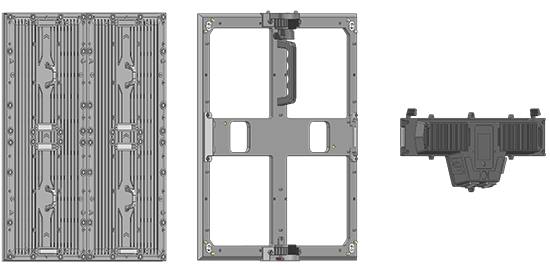

Modular Design of RC-i3.9 Indoor LED Display
Modular Design Indoor LED Display
Straight Installation
Straight Installation Indoor LED Display
Curved Installation
indoor LED display screenindoor LED displays
90 degrees Installation
             
indoor LED display
indoor LED display screen
indoor LED displays
indoor LED display
indoor LED display
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 3.9mm
  • Cabinet Resolution
  • 128x128
  • LED Cabinet Size(WxHxD)
  • 500x500x66mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤3.9kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP40
  • Transparency
  • Solid
  • Refresh Rate
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 135w/cabinet |540W/sqm
  • Power Consumption, Typical (watts)
  • 67.5w/cabinet |270W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～80%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

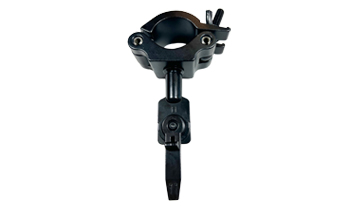

Hanging connection plate

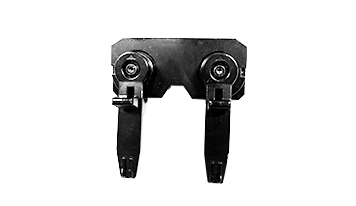

Half connection plate

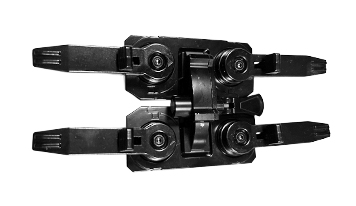

Connection plate

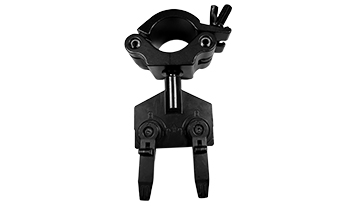

Half hanging connection plate

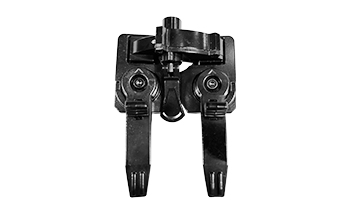

Half curve connection plate

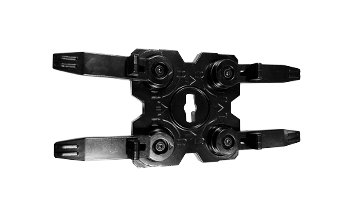

Curve connection plate

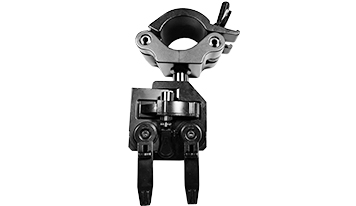

Hanging curve connection plate
