Integrated Touring System | Touring LED screen solution

Allowable Wind Speed +20m/sec

Moulded carbon frame is super light-weight only 13.2kg per panel with wind-bracing included

Offers both front and rear service access

Curving Capability convex 10˚~concave 10˚

Integrated touring system solution
Integrated touring LED screen display 6.9mm



Integrated Touring System Solution


RC Integrated Touring System is a very compact touring product, which combines the LED display panel and the wind-bracing.


Its frame is made of sheet-formed carbon fiber material,


for reducing the overall weight of the integrated touring Redot systems.


With 6.9mm modules, one RC integrated touring system just weigh 13.2kg.

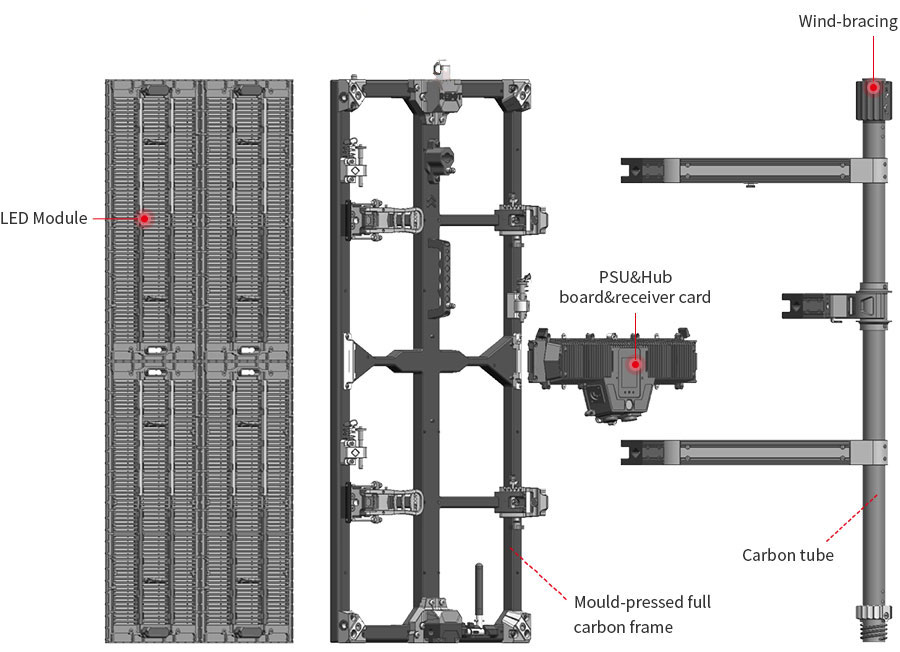

Modular Design of LED screens display
Modular design of rc Integrated touring system
Hanging&Stacking With Wind-bracing
LED screens display Hanging With Wind-bracing
video LED display Stacking With Wind-bracing
Curved Installation
video LED display Curved Installation
LED screens display Curved Installation
Measurements of Video LED Display
  • Integrated touring system solution
    Integrated touring LED screen 6.9mm

    Size: 500x1000x94mm

    Weight: 10kg

  • Integrated touring system 6.9mm wind-bracing collapsed
    Integrated touring LED screen 6.9mm & wind-bracing collapsed

    Size: 500x1000x127.6mm

    Weight: 13.2kg

  • Integrated touring system 6.9mm wind-bracing deployed
    Integrated touring LED screen 6.9mm & wind-bracing deployed

    Size: 500x1000x457.7mm

    Weight: 13.2kg

Dolly with 14/28 Panels Including
Touring Frame and Wind-Bracing
  • Dolly for Integrated touring system
  • Integrated touring system solution Dolly
  • LED screens display Dolly
Accessories
ski
ski connector
hanging bar
double hanging bar
stacking bar
double stacking bar
