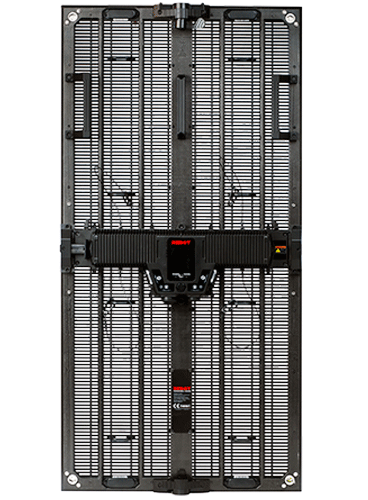

RC-M6.9
LED mesh screen
6.92kg
500x1000mm outdoor LED mesh screen



LED Mesh Screen

Engineered with 3 in 1 SMD RGB package,


RC-M6.9 is a versatile outdoor 5000-nit high brightness LED display.


With its lightweight carbon fiber frame, it only weighs 6.92 kg/panel,

making it ideal for transportation and setup.




Benefits Of Carbon Fiber LED Mesh Screen
  • Lighter
  • Thinner
  • Tougher
  • Faster
12KG
Average weight of 500*1000mm outdoor mesh screen in the market
ONLY 6.92kg
RC-M6.9 500*1000mm outdoor LED wall display screen
Ultralight Carbon Fiber
LED Screen Mesh
  • Full carbon fiber frame
  • Modular Design
  • Curvable
  • 90°Corner
  • Front & Rear Maintenance
  • Full Touring System
led mesh screen
Modular Design of RC-M6.9 LED Mesh Screen
LED mesh screen
  • LED Module
  • Carbon Fiber Frame
  • Power Box
Straight Installation
Straight Installation LED video screen
Curved Installation
Curved Installation LED wall display screenCurved Installation LED video screen
90 degrees Installation
90 degrees Installation
90 degrees Installation
90 degrees Installation
90 degrees Installation
LED wall display screen
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 6.94mm
  • Cabinet Resolution
  • 72x144
  • LED Cabinet Size(WxHxD)
  • 500x1000x63mm | 19.69x39.37x 2.48in
  • Max. Brightness Calibrated
  • 5,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤6.92kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP65
  • Refresh Rate
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 301w/cabinet |602W/sqm
  • Power Consumption, Typical (watts)
  • 150.5w/cabinet |301W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～100%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Max. Hanging(Panels)
  • 15 panels with safety factor 11(indoor)
  • Compliance
  • CE/EMC/LVD
  • Installation
  • Hanging/Stacking
  • Max. Hanging (Panels)
  • 15 panels with safety factor 11
  • Max. Stacking (Panels)
  • 15 panels with safety factor 11
Accessories

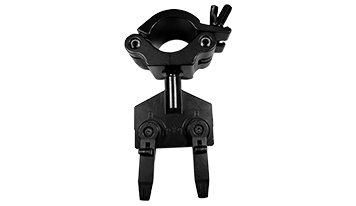

Hanging connection plate

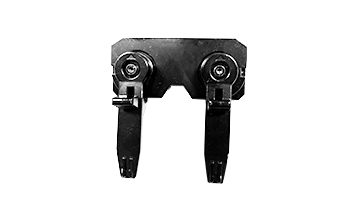

Half connection plate

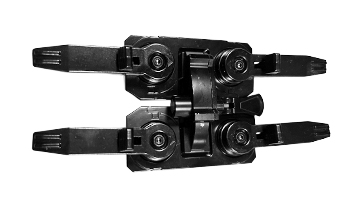

Connection plate

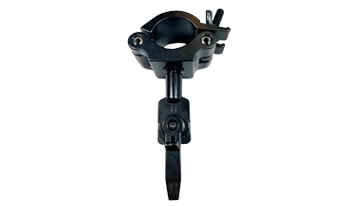

Half hanging connection plate

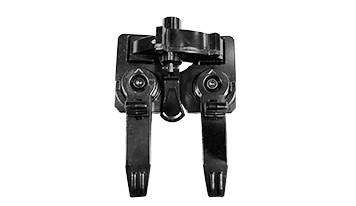

Half curve connection plate

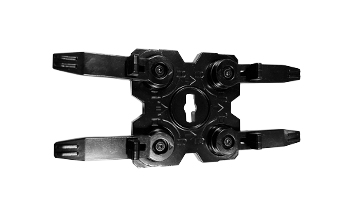

Curve connection plate

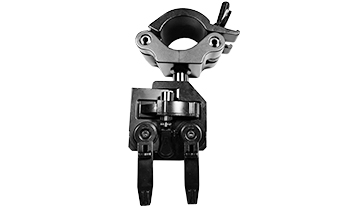

Hanging curve connection plate
