RC-iHolo3.9XL
big LED display
7kg

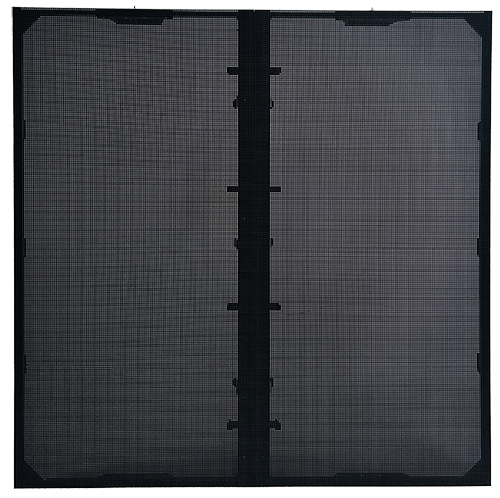

1000x1000mm indoor big LED display



Redefining Ultra-Lightweight


Engineered with a single-molded carbon fiber frame and perforated PCB design,


RC-iHolo delivers exceptional strength while staying incredibly light.


Perfect for rental and fixed installation,


it greatly reduces rigging time and transport costs without sacrificing durability.




Benefits Of Display LED Wall Panel
  • Lighter
  • Thinner
  • Tougher
  • Faster
12KG
Average weight of 1000*1000mm indoor transparent panel in the market
ONLY 7kg
RC-iHolo3.9XL 1000*1000mm indoor display panels LED
Ultralight Carbon Fiber
LED Display
  • Full Carbon Frame
  • Modular Design
  • Curveable
  • 90°Corner
  • Front & Rear Maintenance
  • High transparency
display panels LED
Power Box Front Maintenance
display panels LED Power Box Front Maintenance
Straight Installation
display panels LED Straight Installation
Stacking Installation
display LED wall Stacking Installation
90 degrees Installation
display panels LED
display LED wall


big LED display
Product parameters
  • LED configuration
  • SMD 1515 Black
  • Pixel Pitch
  • 3.91mm(H) 3.91mm(V)
  • Cabinet Resolution
  • 256x256
  • LED Cabinet Size(WxHxD)
  • 1000x1000x68mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fibe
  • Cabinet Weight
  • ≤7kg
  • Viewing Angle
  • 160°H/160°V half brightness point
  • Service Access
  • Front
  • Curving
  • + 10 or – 10°,+ 5 or – 5°
  • IP Rate(Front&Rear)
  • IP40
  • Refresh Rate
  • 7680Hz
  • Transparency
  • 30%
  • Power Consumption, Maximum (watts)
  • 560w/cabinet |560W/sqm
  • Power Consumption, Typical (watts)
  • 280w/cabinet |280W/sqm
  • Operating Temp/Humidity
  • -20°C~45°C | -4° to 113° F/ 10%~80%RH
  • Storage Temp/Humidity
  • -40°C~60°C | -40° to 140° F/ 10%~90%RH (non condensing)
  • Storage Temp/Humidity
  • -40°C~60°C | -40° to 140° F/ 10%~70%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories
Hanging connection plate
Half connection plate
Connection plate
Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
