RC-oT3.9
display LED panel
4.8kg

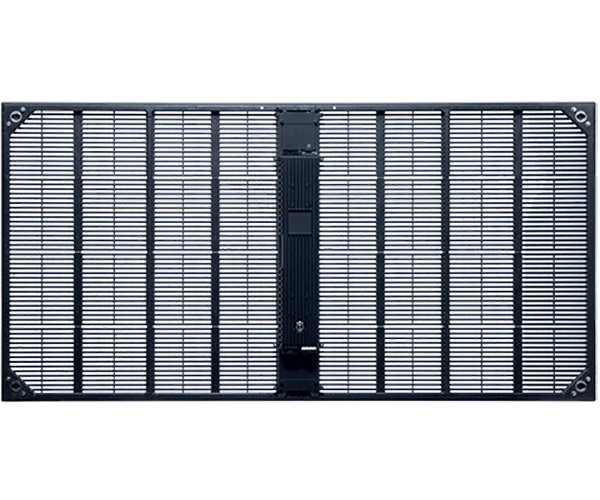

1000x500mm outdoor display LED panel

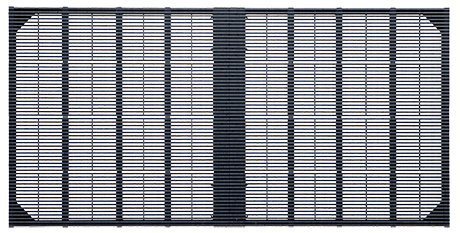

Outdoor Transparent LED Panel

Engineered with a fully sheet-formed carbon fiber frame and 3 in 1 SMD RGB package,


RC-oT3.9 was designed to maximize transparency and ultra lightweight properties, with each panel only weighing 4.8kg.


Moreover, RC-oT3.9 is an outdoor LED display with the mask solution,


which means Redot can customize this LED display products for your projects.




Benefits Of Carbon Fiber LED Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
8KG
Average weight of 1000*500mm outdoor display LED panel in the market
ONLY 4.8kg
RC-oT3.9 1000*500mm rental outdoor LED display
Ultralight Carbon Fiber
LED Display
  • Full Carbon Frame
  • Modular Design
  • Curvable
  • 90°Corner
  • Front & Rear Maintenance
  • High transparency
rental outdoor LED display
Modular Design of RC-oT3.9
display LED panel
Straight Installation
display LED panel Straight Installation
Curved Installation
rental outdoor LED display Curved Installationoutdoor transparent LED display
90 degrees Installation
display LED panel
outdoor transparent LED display
rental outdoor LED display
display LED panel
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 3.9mm(H) 7.8mm(V)
  • Cabinet Resolution
  • 256x64
  • LED Cabinet Size(WxHxD)
  • 1000x5000x69.6mm
  • Max. Brightness
  • 5,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤4.8kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP65
  • Refresh Rate
  • 3840Hz
  • Transparency
  • 33%
  • Power Consumption, Maximum (watts)
  • 360w/cabinet |720W/sqm
  • Power Consumption, Typical (watts)
  • 180w/cabinet |360W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～100%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

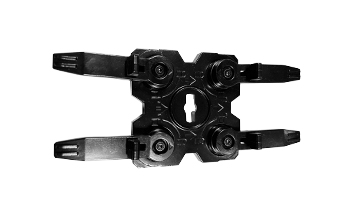

Connection plate

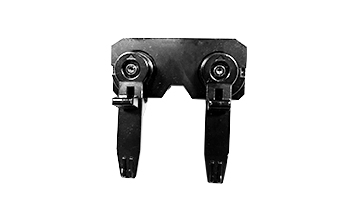

Half connection plate

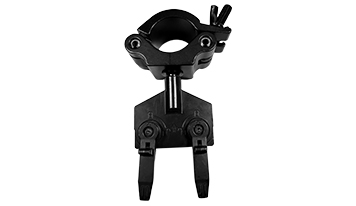

Hanging connection plate

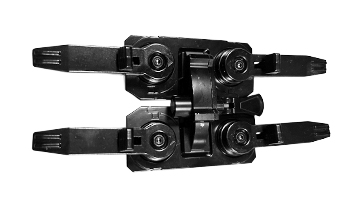

Curve connection plate

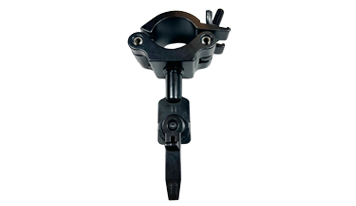

Half hanging connection plate

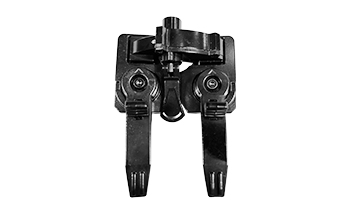

Half curve connection plate

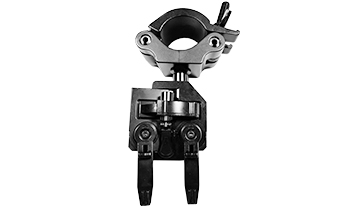

Hanging curve connection plate
