RC-iLHolo3.9
3.7kg
1000x500mm indoor
Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
7KG
Average weight of 1000*500mm indoor transparent panel in the market
3.7kg

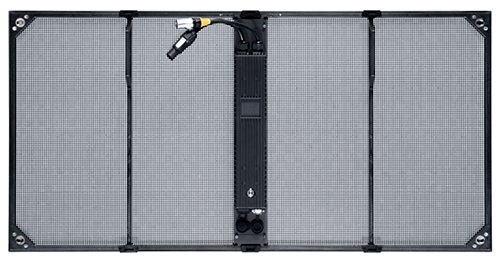

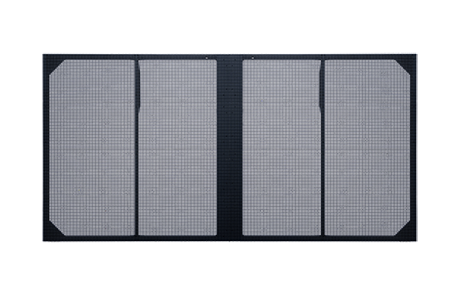

RC-iLHolo3.9 1000*500mm indoor transparent panel
Ultralight Carbon Fiber
Led Display
  • Full Carbon Frame
  • Modular Design
  • Curveable

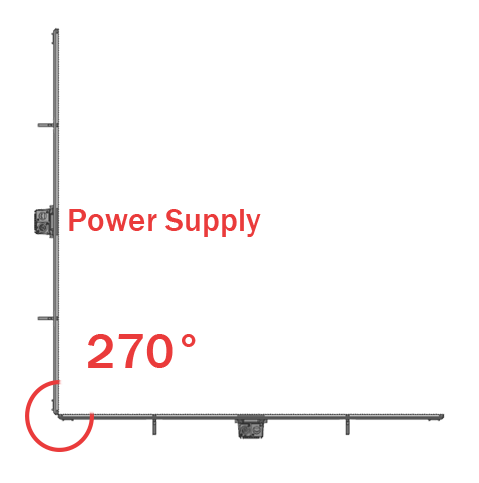

  • 90°Corner
  • Front & Rear Maintenance
  • High transparency

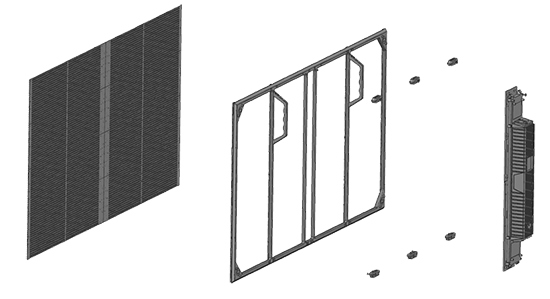

Modular Design

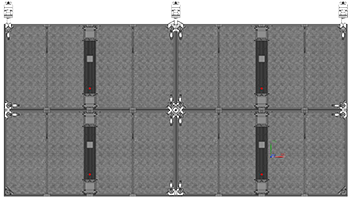

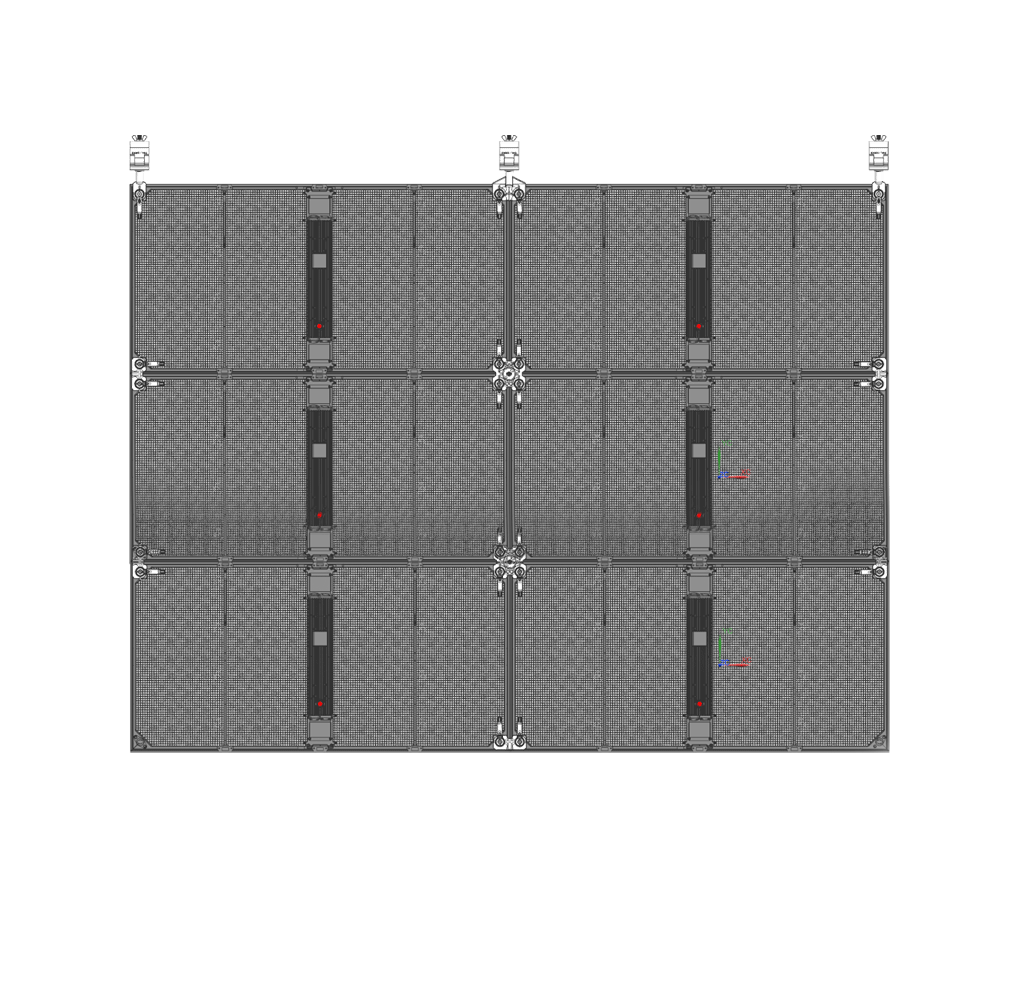

Straight Installation

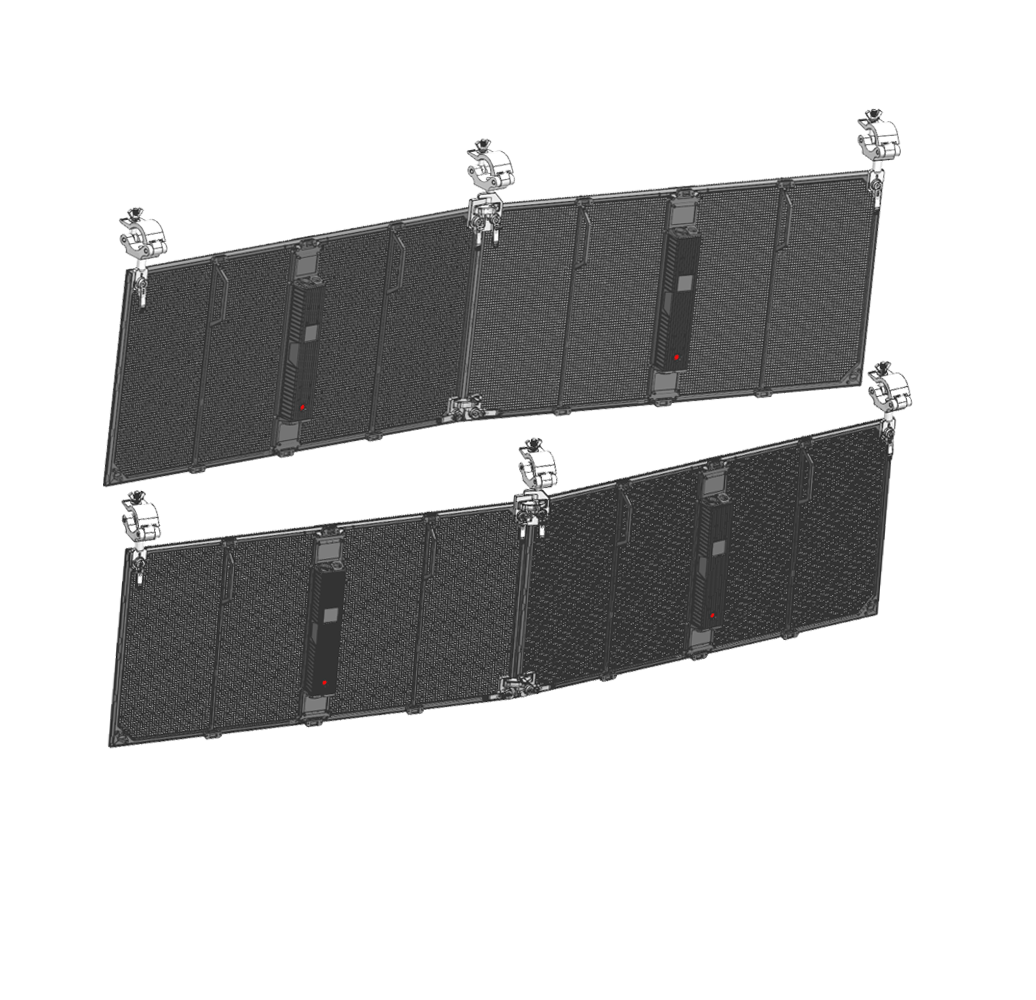

Curved Installation

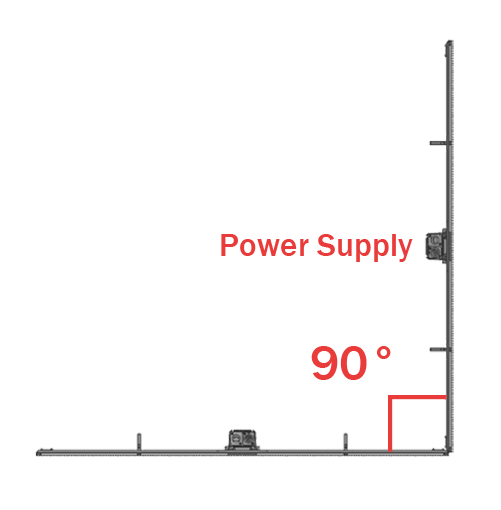

90 degrees Installation


Product parameters
  • LED configuration
  • SMD 1515 Black
  • Pixel Pitch
  • 3.9mm(H) 3.9mm(V)
  • Cabinet Resolution
  • 256x128

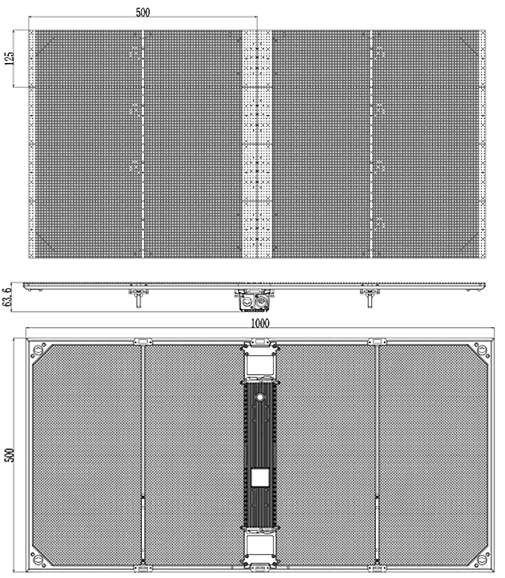

  • LED Cabinet Size(WxHxD)
  • 1000x500x63.6mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fibe
  • Cabinet Weight
  • ≤3.7kg
  • Viewing Angle
  • 160°H/160°V half brightness point
  • Service Access
  • Front
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP40
  • Refresh Rate
  • 7680Hz
  • Transparency
  • 20%
  • Power Consumption, Maximum (watts)
  • 380w/cabinet |760W/sqm
  • Power Consumption, Typical (watts)
  • 200w/cabinet |400W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～80%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Compliance
  • CE/EMC/LVD

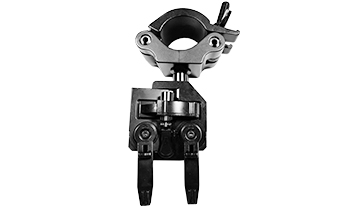

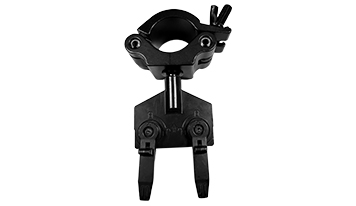

Accessories

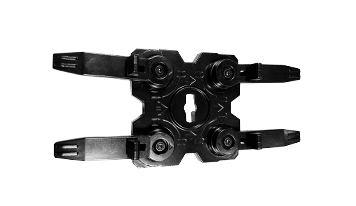

Connection plate

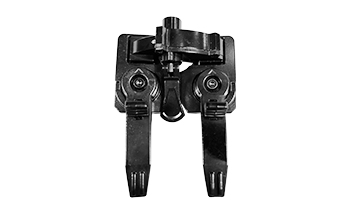

Half connection plate

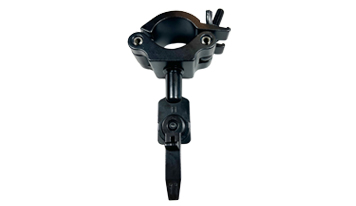

Hanging connection plate

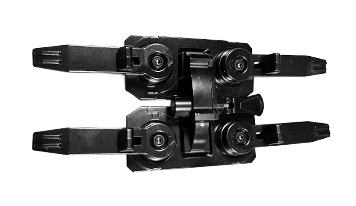

Curve connection plate

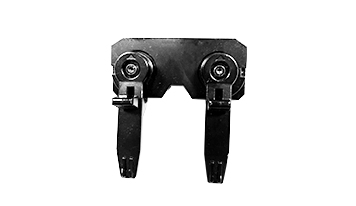

Half hanging connection plate
Half curveconnection plate
Hanging curve connection plate
