RC-iT3.9
LED video display
3.5kg
1000x500mm indoor transparent LED screen
Benefits Of Carbon Fiber LED Video Display
  • Lighter
  • Thinner
  • Tougher
  • Faster
7.5KG
Average weight of 1000*500mm LED video display in the market
ONLY 3.5kg
RC-iT3.9 1000*500mm LED transparent display
Ultralight Carbon Fiber
LED Video Display
  • Full Carbon Frame
  • Modular Design
  • Curveable
  • 90°Corner
  • Front & Rear Maintenance
  • High transparency
LED video display

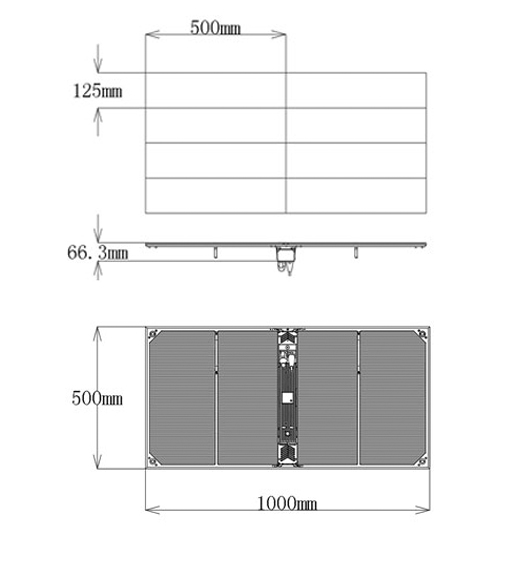

Modular Design of LED transparent display
LED video display
Straight Installation
LED video display straight installation
Curved Installation
transparent LED screenLED transparent display
90 degrees Installation
transparent LED screen
LED transparent display
LED video display
LED display configuration
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 3.9mm(H) 7.8mm(V)
  • Cabinet Resolution
  • 256x64
  • LED Cabinet Size(WxHxD)
  • 1000x500x66.3mm
  • Max. Brightness
  • 1,000nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • ≤3.5kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP31
  • Transparency
  • 41%
  • Refresh Rate
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 200w/cabinet |400W/sqm
  • Power Consumption, Typical (watts)
  • 100w/cabinet |200W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～80%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～90%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories
Hanging connection plate
Half connection plate
Connection plate
Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
