RC-i1.5 (under development)
4.95kg
500x500mm indoor

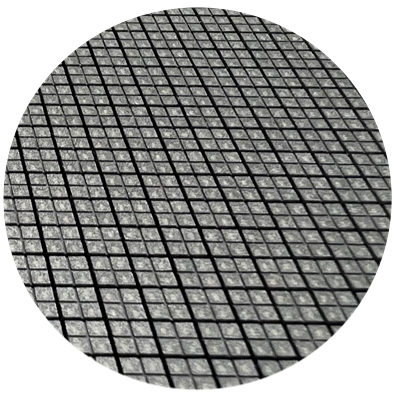

Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
8.5KG
Average weight of 500*500mm indoor panel in the market
4.95kg

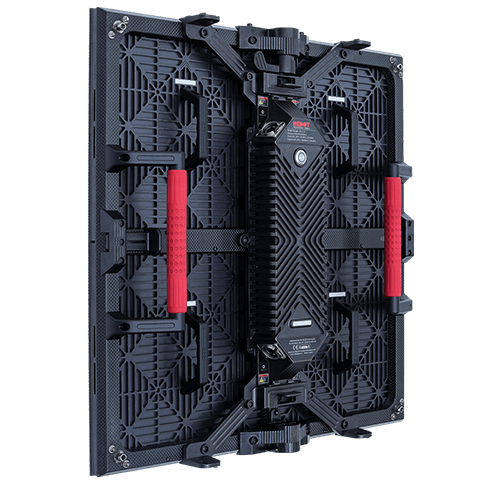

RC-i1.5 500*500mm indoor panel
Ultralight Carbon Fiber
Led Display
  • Full carbon frame
  • Common Cathode
  • IMD LED Package
  • Modular Design
  • Magnesium Alloy Module Shell
  • High Brightness

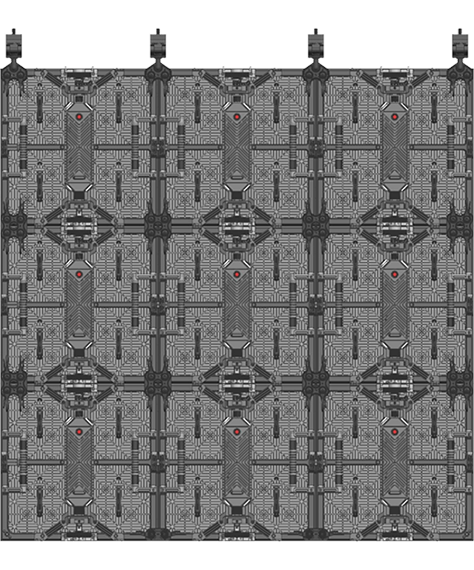

Modular Design

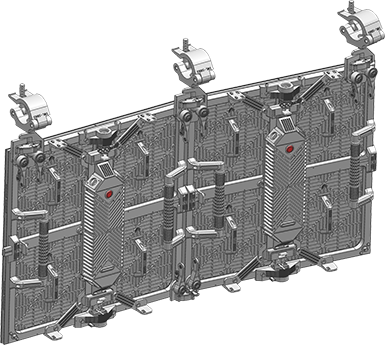

Straight Installation

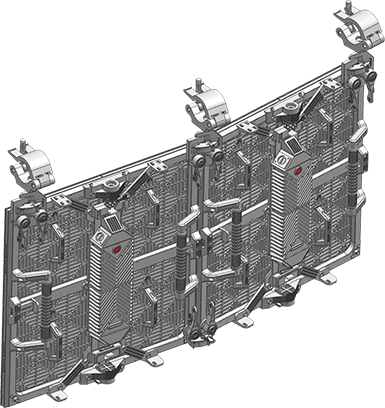

Curved Installation
Product parameters (under development)
  • LED configuration
  • 4in1 common cathode
  • Pixel Pitch
  • 1.56mm
  • Cabinet Resolution
  • 320x320

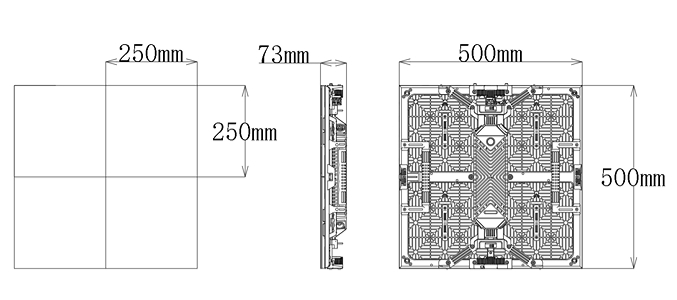

  • LED Cabinet Size(WxHxD)
  • 500x500x73mm
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Max. Brightness Calibrated
  • 1,200nits
  • Cabinet Material
  • Carbon Fiber
  • Cabinet Weight
  • 4.95kg
  • Service Access
  • Front/ Rear
  • Transparency
  • solid
  • Curving
  • +5 or -5°
  • IP Rate(Front&Rear)
  • indoor
  • Refresh Rate
  • 7680Hz
  • Power Consumption, Maximum (watts)
  • 126w/cabinet |504W/sqm
  • Power Consumption, Typical (watts)
  • 63w/cabinet |252W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～100%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

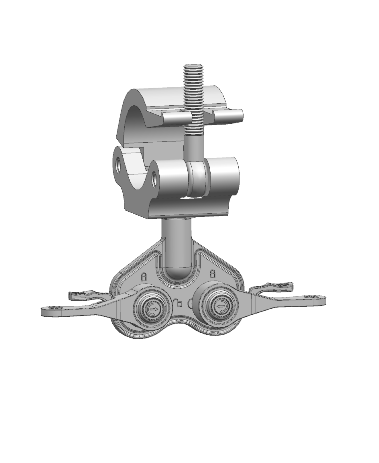

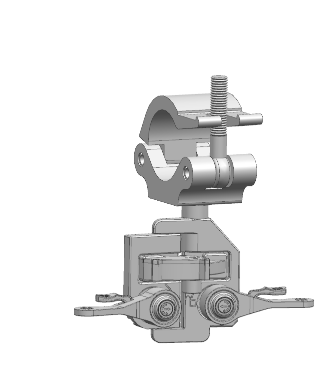

Hanging connection plate

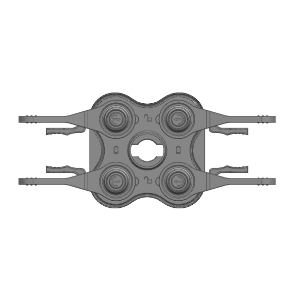

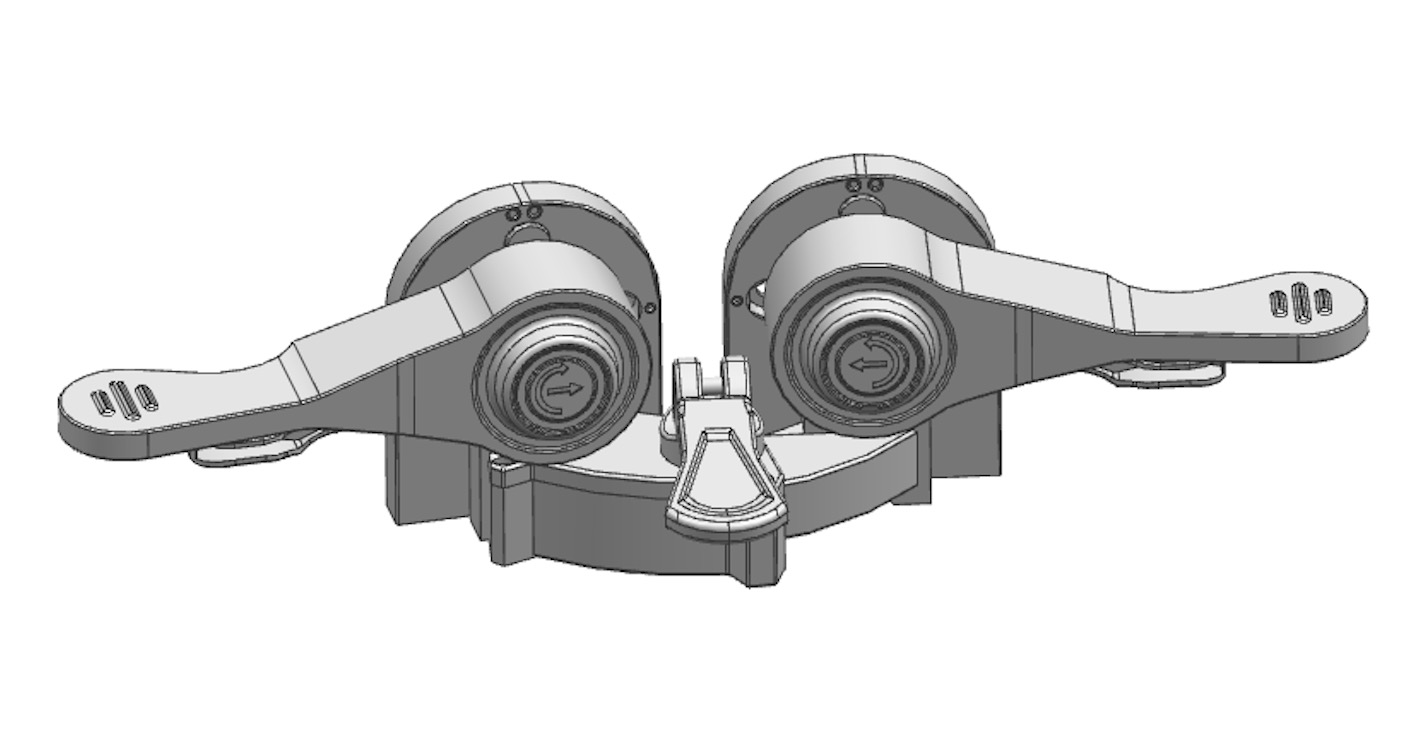

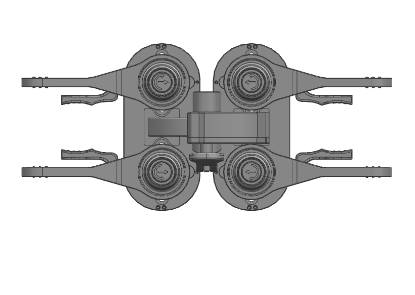

Connection plate
Half connection plate
Hanging curve connection plate
Curving connection plate
Half curving connection plate
